Description

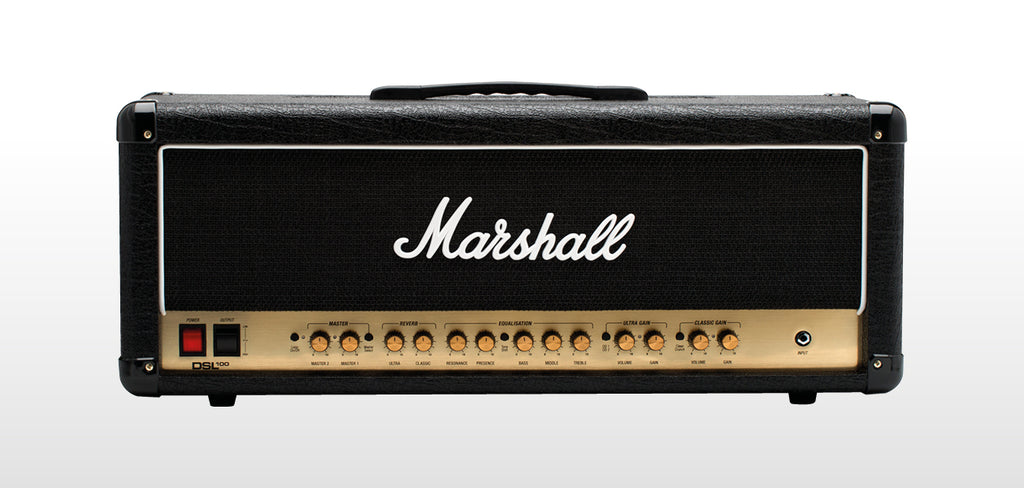

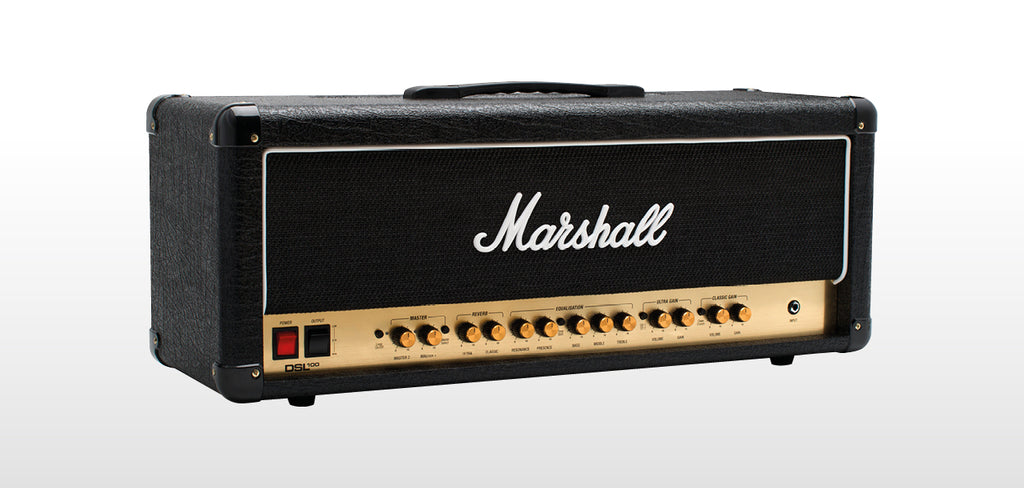

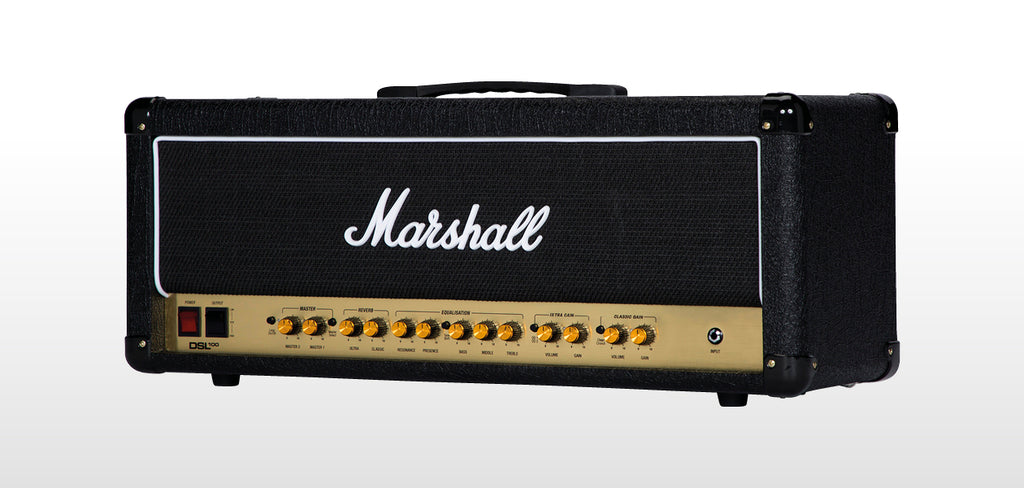

Marshall DSL100HR 100-watt All Valve 2 Channel Tube Amp Head
DSL100H
The DSL100HTM has two gain channels to produce that legendary Marshall sound with rich functionality for those who require flexibility and unquestionable quality. The amp can move between two sounds within each gain channel, so that players can create and release their personality through sound.
KEY FEATURES
STAND OUT ON STAGE
There are two master volume functions so you can bring your solo to the forefront.
CHOOSE YOUR TONE
Using the individual reverb for the two footswitchable gain channels, FX loop and tone shift controls you can experiment with your style.
MIDI COMPATIBILITY
For those more demanding players, the amps features can be controlled using any MIDI equipment, so you can play this amp and different MIDI equipment at any one time.
VARY THE OUTPUT
The DSL100 can be easily taken from the bedroom, to the studio onto a gig using the five available speaker outputs, it also has the ability to record and a standby function for silent recording.
PICK YOUR ENVIRONMENT
The DSL100 can be used in many environments with confidence as the power can be reduced from 100W to 50W without affecting the quality.
TECHNICAL SPECIFICATION
GENERAL
Model: DSL100HR
Range: DSL
Technology: Valve
Channels: 2 (Split) "Ultra gain" and "classic gain"
ELECTRONICS
Output wattage: 100W (with power reduction option to 50W)

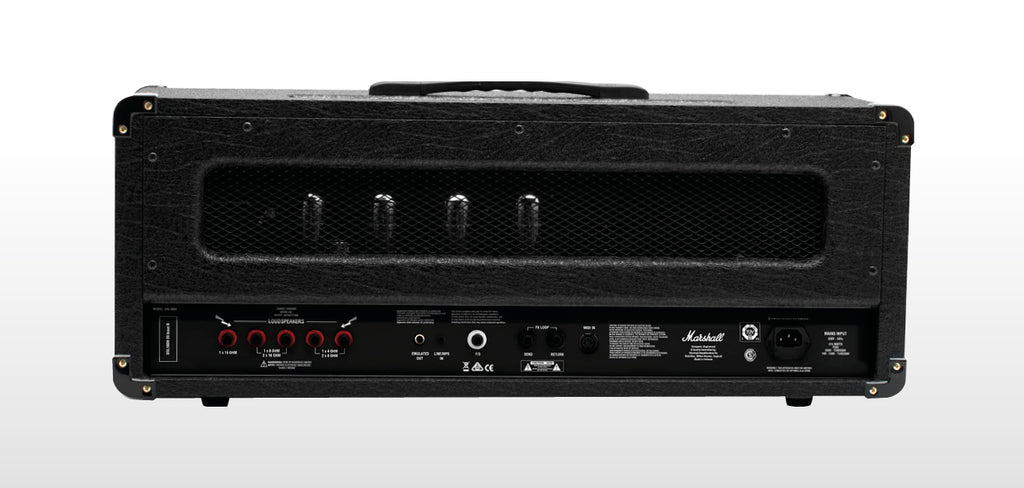

Outputs: Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), 1 x 1/4" jack emulated line out
Inputs: 1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, MIDI in, footswitch
Controls: Loop on/off switch, master volume II, master volume I, master select switch, reverb (ultra gain channel), reverb (classic gain channel), resonance, presence, tone shift switch, bass, middle, treble, ultra gain channel (OD1/2 switch, volume, gain), classic gain channel (clean/crunch switch, volume, gain), low power option (on rear)
Effects: Digital reverb
Effects loop: Yes, series, send/return
VALVES
Preamp valves: 4 x ECC83
Power amp valves: 4 x EL34
ACCESSORIES
Footswitch: PEDL-90012 included. Compatible with PEDL-91016 modes include: 1 - Clean (classic green) 2 - Crunch (classic red) 3 - OD1 (ultra green) 4 - OD2 (ultra red) 5 - Master 1/Master 2 (toggle) 6 - FX Loop on/off
Cable: Detachable power cable included

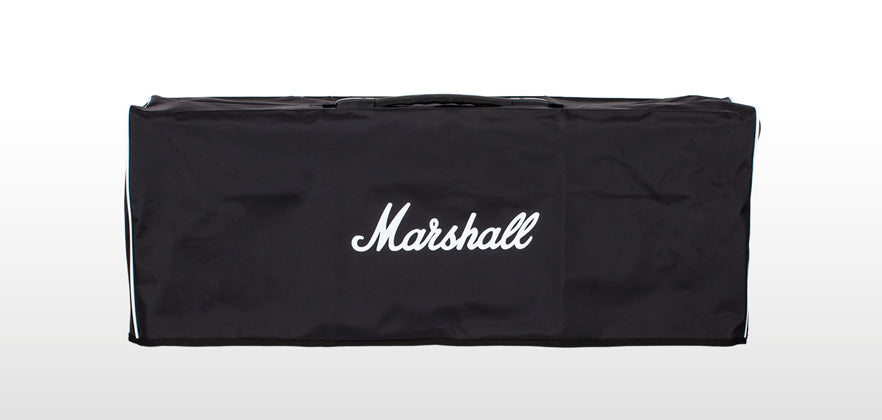

Dust cover: M-COVR-00115 (sold separately)
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight: 24.2 kg / 53 lbs
Width: 740 mm / 29.1"
Height: 274 mm / 10.8"
Depth: 242 mm / 9.5"
