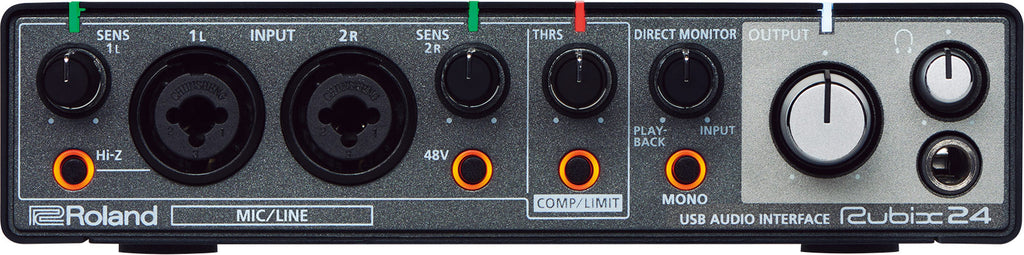

Roland Rubix 24 USB Audio Interface 2 in/4 out


Price:
$199.99

Description

Roland Rubix 24 USB Audio Interface 2 in/4 out



SYSTEM

Number of Audio Record/Playback ChannelsRecord: 2 channels
Playback: 4 channelsSignal ProcessingPC interface: 24 bits
AD/DA conversion: 24 bitsSampling Frequency AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

InterfaceHi-Speed USB
MIDI IN, OUTConnectors

INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)
INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)
PHONES jack: Stereo 1/4-inch phone type
OUTPUT (1L, 2R, 3L, 4R) jacks: 1/4-inch TRS phone type (impedance balanced)
MIDI (IN, OUT) connectors
USB port: USB Type B
DC 5V port: USB Type micro B
*1 Current value per channel.
*2 INPUT 1L supports high impedanceControllers SENS 1L, 2R knobs
Hi-Z switch
48V switch
THRS knob
COMP/LIMIT switch
DIRECT MONITOR knob
MONO switch
OUTPUT knob
PHONES knob
POWER SOURCE switch
LOOPBACK switch
COMP/LIMIT TYPE switch
GROUND LIFT switch
PHONES SOURCE switch Indicator Level indicators (1L, 2R)
Level indicator (COMP/LIMIT)
POWER indicator
Hi-Z indicator
48V indicator
COMP/LIMIT indicator CHARACTERISTICS

Comes with Ableton Live Lite Serial Number Card

Nominal Input Level INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu

Maximum Input Level INPUT (1L, 2R) connectors (XLR type): +2 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu

Nominal Output LevelOUTPUT (1L, 2R, 3L, 4R) jacks: -6 dBu (impedance balanced)

Maximum Output Level OUTPUT (1L, 2R, 3L, 4R) jacks: +8 dBu (impedance balanced)PHONES

Maximum Output Power20 mW + 20 mW (L + R, 47 ohms load)Headroom14 dB Input Impedance INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced)
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)
INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater
*3 When the Hi-Z is turned onOutput ImpedanceOUTPUT (1L, 2R, 3L, 4R) jacks: 2 k ohms (balanced)
PHONES jack: 47 ohmsResidual Noise LevelINPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)Dynamic RangeAD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
DA block OUTPUT (1L, 2R, 3L, 4R) jacks: 109 dB typ.

SYSTEM Number of Audio Record/Playback ChannelsRecord: 2 channels
Playback: 4 channelsSignal ProcessingPC interface: 24 bits
AD/DA conversion: 24 bits Sampling Frequency AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz Interface Hi-Speed USB
MIDI IN, OUT Connectors

INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)
INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)
PHONES jack: Stereo 1/4-inch phone type
OUTPUT (1L, 2R, 3L, 4R) jacks: 1/4-inch TRS phone type (impedance balanced)
MIDI (IN, OUT) connectors
USB port: USB Type B
DC 5V port: USB Type micro B
*1 Current value per channel.
*2 INPUT 1L supports high impedanceControllersSENS 1L, 2R knobs
Hi-Z switch
48V switch
THRS knob
COMP/LIMIT switch
DIRECT MONITOR knob
MONO switch
OUTPUT knob
PHONES knob
POWER SOURCE switch
LOOPBACK switch
COMP/LIMIT TYPE switch
GROUND LIFT switch
PHONES SOURCE switchIndicatorLevel indicators (1L, 2R)
Level indicator (COMP/LIMIT)
POWER indicator
Hi-Z indicator
48V indicator
COMP/LIMIT indicator CHARACTERISTICS

Nominal Input Level INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu

Maximum Input Level INPUT (1L, 2R) connectors (XLR type): +2 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu

Nominal Output Level OUTPUT (1L, 2R, 3L, 4R) jacks: -6 dBu (impedance balanced)

Maximum Output Level OUTPUT (1L, 2R, 3L, 4R) jacks: +8 dBu (impedance balanced)PHONES

Maximum Output Power 20 mW + 20 mW (L + R, 47 ohms load) Headroom 14 dB Input Impedance INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced)
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)
INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater
*3 When the Hi-Z is turned onOutput ImpedanceOUTPUT (1L, 2R, 3L, 4R) jacks: 2 k ohms (balanced)
PHONES jack: 47 ohmsResidual Noise LevelINPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)Dynamic RangeAD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
DA block OUTPUT (1L, 2R, 3L, 4R) jacks: 109 dB typ. OTHER Power SupplySupplied from the computer via USB, DC 5V Current Draw500 mA Operating SystemMicrosoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10
Apple Mac OS X 10.10 or later
Apple iOS 9 or later

* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the Rubix, Roland cannot guarantee that a given computer can be used satisfactorily with the Rubix based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.Dimensions183 (W) x 165 (D) x 46 (H) mm
7-3/16 (W) x 6-1/2 (D) x 1-13/16 (H) inchesWeight (main unit only)1.2 kg
2 lbs 11 ozAccessoriesSetup Guide
Leaflet "USING THE UNIT SAFELY"
USB cable
* 0 dBu = 0.775 Vrms
